Rather 21

BIG ALL-MOUNTAIN DAYS WHERE TRAVEL AND GEOMETRY MATTER MOST

BUILT FOR ABUSE AND ROWDY RIDING

ENDURO-STYLE RIDING AND RACING

BIG BIKE, BIG WHEELS, BIG FUN

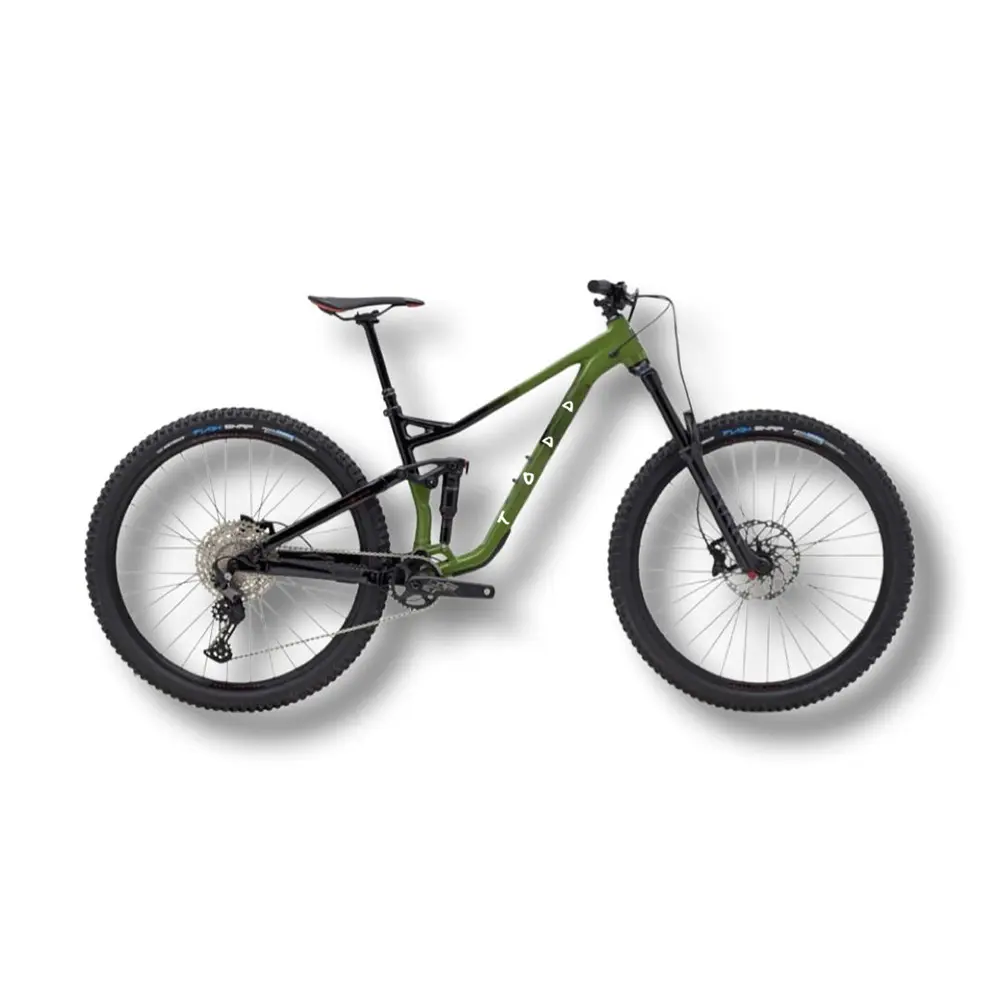

The Alpine Trail is a 29” wheeled full suspension bike built for the all day enduro rider that earns their downhill fun.

• SUSPENSION: RockShox Yari RC / Rock Shox Deluxe Select + RT
• WHEEL SIZE: 29″
• FRAME: Aluminum

SPECIFICATIONS

• FRAME

• Series 4 6061 Aluminum Frame, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs

• FRONT SUSPENSION

• RockShox Yari RC, 29”, 160mm of Travel, Air Sprung, Debonair, Compression and Rebound Adjustment, Fast Black Stanchions, 110x15mm Maxle Stealth, 42mm Offset

• REAR SUSPENSION

• Rock Shox Deluxe Select + RT, Debonair Air Spring, 2 Position Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount

• RIMS

• Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

• HUB, REAR

• Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub Body

• HUB, FRONT

• Shimano HF-MT410B, 110x15mm, Centerlock

• SPOKE, NIPPLES

• 14g Black Stainless Steel

• TIRES

• Vee Tire Flow Snap, 29×2.6”, Tackee Compound, 72 TPI, Tubeless Compatible

• DERAILLEUR, REAR

• Shimano Deore, 12-Speed, SGS

• SHIFT LEVER

• Shimano Deore, 12-Speed, SL6100-IR

• CRANKSET

• FSA Comet Heavy Duty, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

• BOTTOM BRACKET

• Mega EXO 73mm BSA

• CHAIN

• KMC X-12 Silver and Black

• CASSETTE

• Shimano, Deore M6100 12-Speed, 10-51T

• BRAKE, FRONT

• Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor

• BRAKE, REAR

• Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, 180mm Rotor

• BRAKE LEVERS

• Shimano BL-M4100 Hydraulic Lever, I-Spec EV Compatible

• HANDLEBAR

• Todd Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

• STEM

• Todd 3D Forged Alloy, 35mm

• GRIPS

• Todd Single Clamp Locking

• HEADSET

• FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8″ x 1 1/2”

• SEATPOST

• TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm

• SADDLE

• Marin Speed Concep

• EXTRAS

• Bolt-On Thru-Axle

• EXTRAS

• Downtube Protector
